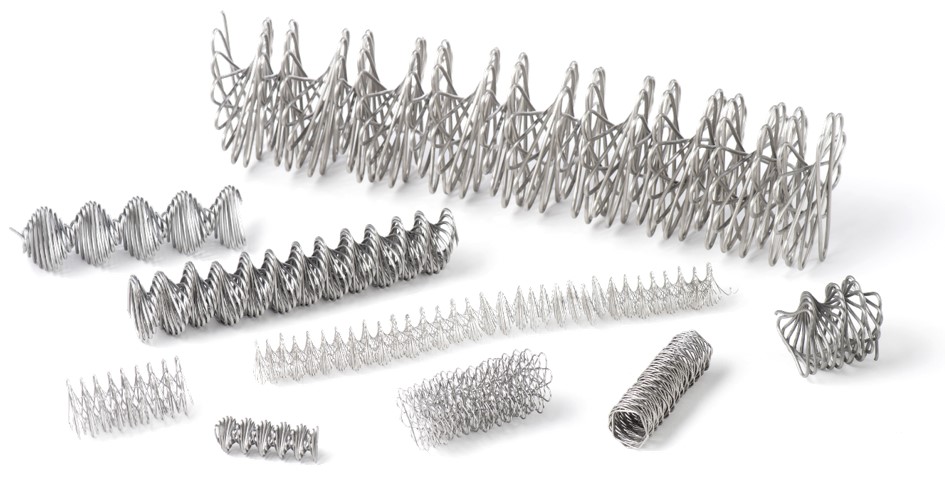

Open and Porcupine Coils
In addition to supporting the load bank industry's need for raw material, Hyndman Industrial Products also produces open coils and porcupine coils. Let us leverage our supply chain and advanced manufacturing processes to deliver coils that are both high quality and cost competitive.
Coils available cut to length at a specific resistance as well as in continuous coil form.
Typical alloys used in the load bank and resistor industries are:
N6 - Common Name: Chromel® C, Nikrothal® 60, Tophet® C, Resistohm® 60, Alloy C, MWS-675, Stablohm® 675
N8 - Common Name: Chromel® A, Nikrothal® 80, Tophet® A, Resistohm® 80, Alloy A, MWS-650, Stablohm® 650
ALK - Common Name: Alkrothal® 14, Alloy 750, Alferon® 902, Alchrome® 750, Resistohm® 125, Stablohm® 750
A90 - Common Name: Alloy 95, 90 Alloy, MWS-90, Cu-Ni 10, Cuprothal® 15, Cu-Ni 10, Alloy 320
A180 - Common Name: Alloy 180, 180 Alloy, MWS-180, Cuprothal® 30, Midohm®, Cu-Ni 23, Nickel Alloy 180
294 - Common Name: Alloy 294, Cuprothal® 294, Nico®, MWS-294, Cupron®, Copel®, Alloy 45, CuNi 102, Cu-Ni 44
KD - Common Name: Kanthal® D, Alloy 815, Alchrome® DK, Alferon® 901, Resistohm® 135, Aluchrom® 5, Stablohm® 812
KA1 - Common Name: Kanthal® A1, Alloy 875, Resistohm® 145, Alchrome® 875, MWS-875, Stablohm® 875
KAF - Common Name: Kanthal® AF, Resistohm® Y, Aluchrom® Y, Alloy 837, AF
Contact us today with your coil design parameters for a quotation.
